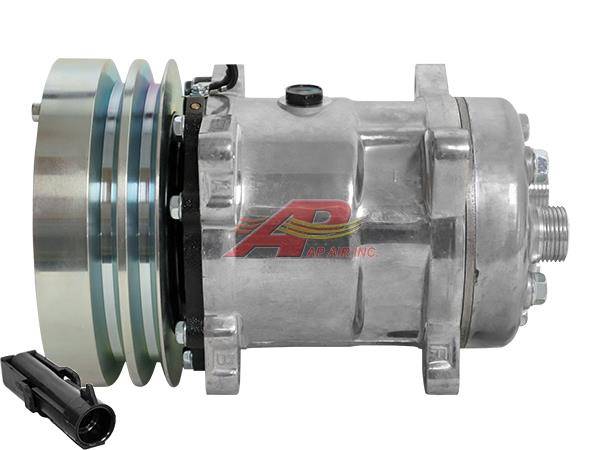

509-5603 - Case, Case/IH, International, Ford New Holland, Steiger COMPRESSOR

(0) Reviews: Write first review
509-5603
Heavy Duty 5 Piston Replacement
(Can Also Use Original Sanden 509-560)

COMPRESSOR TYPE: SD5H14HD
HEAD TYPE: MD
OIL TYPE: Pag 100
CLUTCH DIAMETER: 152mm, 5.98"
VOLTAGE: 12
GROOVES: 2
BELT WIDTH: 1/2"
COIL POSITION: N/A
OIL QUANTITY: 285cc, 9.6 oz.
GAUGE LINE: 39.55mm
Pricing: $290.00
Qty:

Description

Replaces OEM#: 1977958C1, 86993462, AG325732

621C: May need 24v Coil
MX240: Must Identify Compressor Mounting Style and Clutch
8830: Serial Number CFH0028999 and Above
8820: Serial Number CFH0049253 & Above, O-Ring
8840: Serial Number CFH0086001 and Above, O-Ring
1056XL, 1255XL, 1455XL, 956XL: Serial Number D002948 and Above, O-Ring
9230, 9240, 9250, 9260, 9270, 9280, 9210: Serial Number JEE0031850 & Above, O-Ring
1620: Serial Number JJC0032630 & Above, O-Ring
1640: Serial Number JJC0034705 & Above With Cummins Engine, O-Ring
1660: Serial Number JJC0038346 and Above
1680: Serial Number JJC0045689 & Above, O-Ring
1670: Serial Number JJC008540 & Above, O-Ring

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 19.2 lbs.
  • W9.6000” x H12.0000” x L8.2500”
